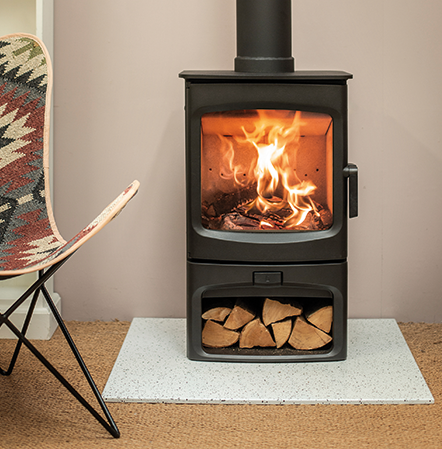

 Charnwood Aire 5 Aire on store stand  Charnwood Aire Charnwood Aire on low stand  Charnwood Aire Charnwood Aire on store stand  Quatraflow system The Quattroflow Air Management System is a revolutionary air management system patented by Charnwood and used on the Aire, Skye, Arc, Cove, Island, Bay, Bembridge and C-Series models.  Sliding firebed for clean and easy ash removal. Available on the Aire and Cranmore range  Cool touch handle Cool touch handle allows easy opening without the need for a tool or glove.  External air supply The external air kits are a range of devices that enable an outside air supply to be channeled directly into your Charnwood stove. As well as providing further comfort and operational efficiency for your stove our air kits help overcome issues where the room requires an additional air supply. They are available for all Aire, Skye, Arc, Bay, Cove, Island, C-Series and Bembridge dry models.  Charnwood heatshields Charnwood’s rear heat shields and convection panels are designed specifically for situations where space within the fireplace is limited. The steel heat shield allows minimum rear wall clearances to be reduced. The heat shield is available in a number of sizes for all Aire, Cove, Island, C-Series, Bembridge and Country dry model  Vertical Rear Flue adaptor A vertical rear flue adaptor is available for all Aire, Skye, Arc, Island, Cove, C-Series, Bembridge and Country models. This enables you to position the stove further out into the room: away from the wall behind. This will add a depth to the stove of between 115 -196mm depending on the model.  Cooking plates The cast iron plates incorporates conduction fins on the underside and simply replaces the blanking plate on a standard Charnwood stove to create a highly effective hot plate for cooking.  Eco label click the images to enlarge | With an oversize ceramic glass window this British made stove features our largest ever view of the fire and one of our most impressive flame pictures. The Aire incorporates Charnwood’s unique BLU burning technology that is not only a vast improvement on the new 2022 Ecodesign standards but meets with Defra exemption limits; allowing wood to be burnt cleanly and safely in smoke control areas. |
| Body material | Steel body - cast iron door |
| Rated output | 5kw |
| SIA Ecodesign | Yes - more information |
| Smoke control area approved | Yes |
| Cleanburn / Airwash | Yes |
| Efficiency | 84% |
| Room vent required | No - *unless the house was built after 2008- See Doc J page 17 |
| External air supply option | Yes |
| Flue connection | 150mm - top or rear interchangable |
| Maximum log length | 260mm |
| Fuel type | Wood |
| Grate / Ashpan | Ashpan only |
| Suitable for 12mm Hearth | Yes |
| Weight | 84kg |
Low Stand
Store stand
Heat shield
Vertical rear flue adaptor
External Air Kit
