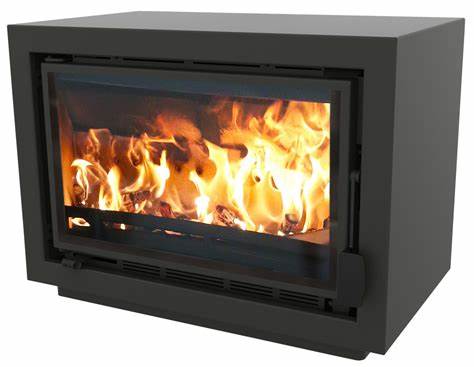

   click the images to enlarge | The BX features an outer casing transforming the appliance into a freestanding stove. The Bay BX can be installed directly onto a hearth or we offer a choice of three base options to raise the stove up: bench stand, centre stand or store stand.
|
| Body material | Steel body - cast iron door |
| Rated output | 5kw |
| SIA Ecodesign | No - more information |
| Smoke control area approved | Yes |
| Cleanburn / Airwash | Yes |
| Efficiency | 81% |
| Room vent required | No - *unless the house was built after 2008- See Doc J page 17 |
| External air supply option | No |
| Flue connection | 150mm |
| Maximum log length | 460mm |
| Fuel type | Wood |
| Grate / Ashpan | No |
| Suitable for 12mm Hearth | No |
| Weight | 104kg |
